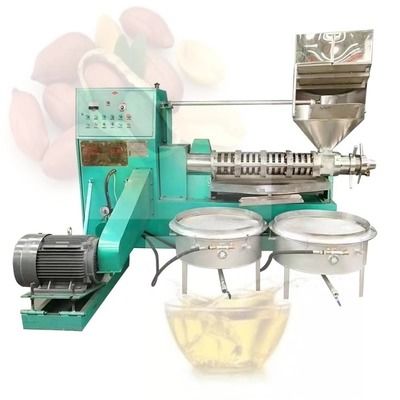

Coconut Oil Press Machine

Coconut Oil Press Machine

Technical Parameter :

1. Easy operating and small size, saving land, labor and energy consumption

2. Big pressing force in the chamber, making high oil output

3. Long-term continuous work, bring better economic benefit to user

4. Good quality and long durability, made of the most suitable material with refined treatments to ensure more than 10 years using

5. Wearing parts can be dismountable

6. Different design in squeeze chamber for both cold and hot pressing

7. Multi-function combined auto-temperature control and oil vacuum filter

8. Bevel gear technology make good performance when operating

Working Principle :

1. Transferred by the triangle belt, the electromotor drives the spiral shaft.

2. The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.

3. As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.

4. During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.

5. After extracted, the oil plants turns to be cake containing low oil and discharged in thin slices from the end of the machine. The whole oil and residue separation process is completed.
