商品の詳細:
|
| Name: | CE certificate tunisia bulk pine aspen wood shavings for horse animal bedding machine wood shaver | Power(w): | 11-55kw |
|---|---|---|---|
| Weight: | 500kg | Voltage: | 380v ,Customized |
| Dimension(l*w*h): | 1200*500*700mm | Capacity: | 300-2000kg/h |
| After-sales Service Provided:: | Online support | Package: | wooden case |

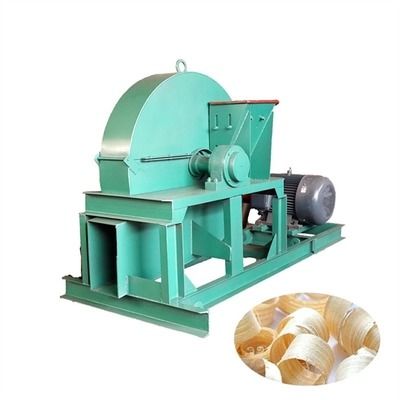

Small wood log shaving machine for horse chicken sheep pet bedding by factory
Introduction of wood shavings crusher machine
This shaving machine is mainly used to cut the wood into uniform shavings, and the thickness of shavings can be adjusted from 0.2mm to 1.5mm. This machine can shave different kinds of log, twit or branch, plywood, board or plate, etc.
| Type | Knives qty | Input size(mm) | Cutter dia(mm) | Blade size(mm) | Output(t/h) | Spindle speed(r/min) | Power(kw) | Size(mm) |
| 420 | 4 | 160*155 | 424 | 90*60*8 | 0.8-1.5 | 2600 | 7.5-11 | 1200*550*750 |
| 500 | 4 | 210*180 | 510 | 120*70*8 | 1.2-2.0 | 2400 | 18.5-22 | 1500*640*820 |
| 600 | 4 | 235*200 | 600 | 150*70*8 | 1.8-2.5 | 2200 | 22-30 | 1600*700*1050 |
| 700 | 4-6 | 230*200 | 600 | 180*70*8 | 2.5-3.5 | 2000 | 30-37 | 1850*830*1050 |
| 900 | 8 | 280*290 | 750 | 150*100*10 | 5.5-6.5 | 1500 | 55-75 | 2000*870*1500 |
| 1000 | 8 | 280*290 | 750 | 150*140*10 | 6-7 | 1500 | 75-6 | 1180*1100*940 |
| 1200 | 8 | 390*385 | 1000 | 190*140*12 | 7-8.5 | 1200 | 90-6 | 1430*1500*1200 |
| 1500 | 8 | 425*500 | 1160 | 230*140*14 | 9-11 | 1000 | 110-6 | 1650*1750*1400 |
| 1800 | 12 | 530*560 | 1300 | 150*140*14 | 11.5-14 | 950 | 132-6 | 2050*1850*1620 |
Application of wood shavings crusher machine
It can work out the even and same thickness shavings or chips, can be used to make plywood, in the paper making factory and fragile's filling materials in transporting company,also can be used to make bed for animals or poultry, such as chicken, rabbit, cow, horse, sheep, dog and cat and so on. It also can be used as bio-energy.
This wood shaving crusher is composed of chip cutting devices, crushing device, also can equipped with cutter shredded bark, straw, rice straw, agricultural products
Helical surface wood sawdust crusher, but cutting diameter of 300 mm below the log, path and branches, applicable to the pulp mill, timber, paper, wood factory,etc.
drum chipper is my company"s domestic newest chipper, suitable for particle board, medium density board, wood fiber board, paper making, power plants, and other industrial boilers.
Our company is in accordance with international standards, carefully produced to ensure quality.
Package
1.wood shaving machine italy will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.
2.Packaging details standard export wooden case or in container.
Shipping
1.We will serve your shipping method about ocean transport ,air lift ,freights and so on.
2.The delivery time is usually 7-15 working days upon receipt of your payment.
