High Efficiency Fully Automatic Medium Large Scale Livestock Feed Processing Production Line Equipment

The modular expansion and intelligent control of the feed production line enable efficient and low-consumption production, accurately meeting the diverse nutritional needs of cattle, sheep and poultry.



The basic production process of a complete chicken feed pellet production line includes grinding, mixing, pelleting, cooling, packaging, etc. In addition to chicken and poultry feed pellets, it can also be used to produce feed pellets for fish, sheep, cattle, rabbits, horses, pigs and other livestock.





<table border="1" cellpadding="0" cellspacing="0" class="table" open="" sans",="" poppins,="" oswald,="" "noto="" montserrat,="" arial,="" sans-serif;="" font-size:="" 16px;="" width:="" 650px;="" overflow-wrap:="" break-word;"="" style="font-family: Roboto; font-size: 12px; margin: 0px; padding: 0px; -webkit-tap-highlight-color: transparent; border-collapse: collapse; color: rgb(17, 17, 17); overflow-wrap: break-word;">

Capacity 15-20t/h Range of application large commerical feed factory,could make chicken,sheep,cow,shrimp feed Workers requirments 4-5 people Shipment requirments 6*40ft container Product advantages Fully automatic intelligent batching, computer control system with stable output, efficient and continuous operation, labor saving, direct packaging, particle size can be selected from 1-12mm. size for whole line According to land size and layout



Raw Material Processing Module
Grinding Equipment: Utilizes a water drop or hammer mill for processing raw materials such as corn and straw, supporting a grinding capacity of 5-10 tons per hour, suitable for mixing high-fiber forage with grains.

Batching System: Multi-bin automatic metering, with low error rate and support for dynamic recipe adjustment, is suitable for precisely blending roughage for cattle and sheep with concentrate feed for poultry.

Pelletizing and Forming Module
Ring Die Pellet Mill: Suitable for large-scale production lines, it can quickly adjust pellet sizes to meet the digestibility needs of different animals, such as cattle, sheep, and poultry. It can produce 3-10 tons per hour.
Cooling and Screening System: A countercurrent cooler cools pellets to room temperature, and a vibrating screen removes debris to ensure pellet uniformity and storage stability.
Automated Packaging Line: Quantitative packaging scales provide automatic weighing and sealing.
Mixer: Blenders uniformly mix silage, concentrate, and additives, reducing manual feeding.

Medium-sized production lines: 5-8 tons, featuring a ring die pellet mill, automatic batching, and cooling and packaging lines. Suitable for regional feed mills or farms handling 1,000 head of livestock.
Large-sized production lines: 10-20 tons, featuring a full steel frame structure, extrusion modules, and an intelligent central control system. Suitable for intensive livestock farms or feed processing plants.





Finished Product Display

















FAQ

What kinds of feed can be produced on this line?

This line can produce:
Pellets for poultry, livestock and aquatic animals.
Specialized feed formulations for different growth stages or dietary requirements.
Crushed feed for young and newborn animals.

What raw materials can this line process?
The line supports a wide range of raw materials, including:
Cereals (corn, wheat, sorghum).
Oilseed meals (soybean meal, rapeseed meal).
Agricultural by-products (bran, rice husks).
Liquid additives (molasses, oils, enzymes).



What are the benefits of choosing this pellet line?
Scalability: Designed to support growing production needs.
Cost-effectiveness: Reduces energy and operating costs.
Flexibility: Produces a variety of feed types with customizable pellet sizes.



For more information on process design, equipment layout, plant construction plan, single machine equipment quotation, turnkey quotation, etc., please feel free to contact us.

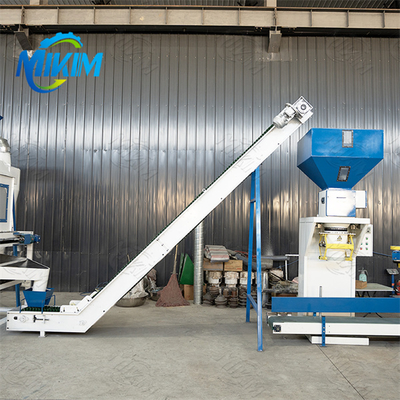

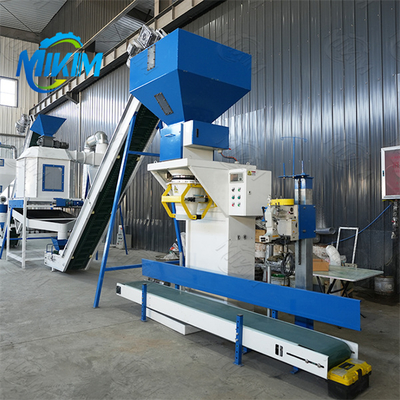

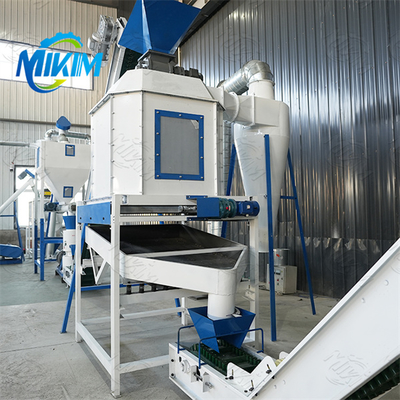

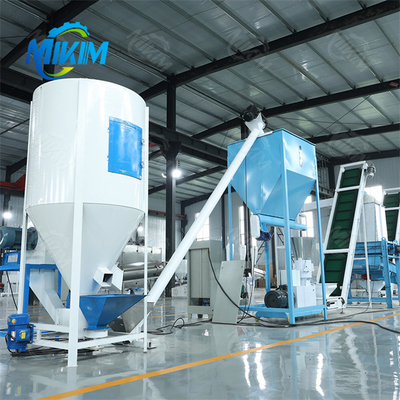

Equipment Photos
