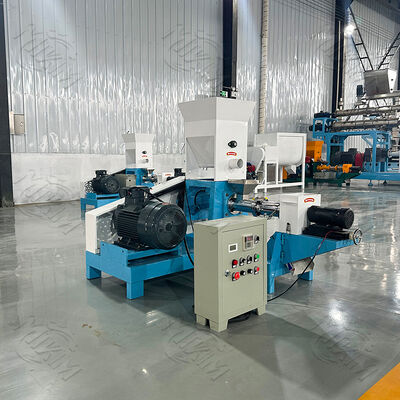

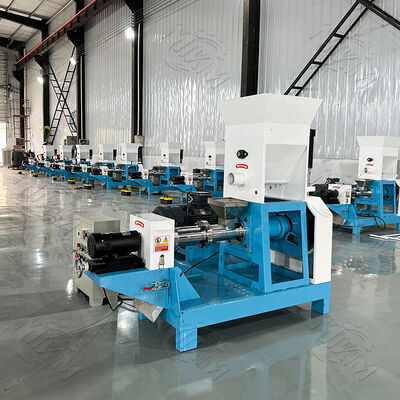

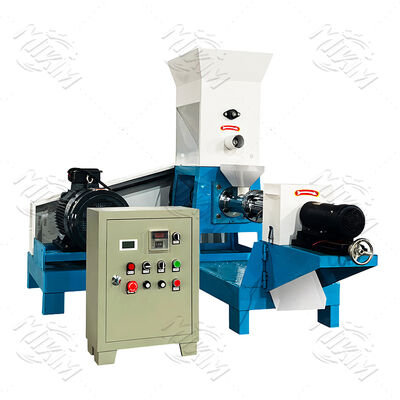

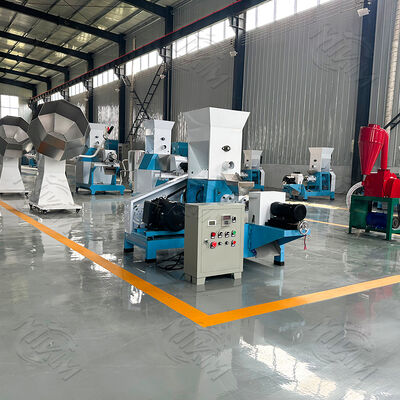

This commercial floating fish feed extruder machine is designed for producing high-quality feed pellets for aquaculture and animal feed applications. With a capacity of 120KG/h, it efficiently processes various raw materials into customized pellets suitable for fish, shrimp, crabs, dogs, cats, rabbits, and other animals.
Product Overview
The floating fish feed extruder produces high-quality feed pellets for fish and aquatic animals, designed to create pellets with various sizes, shapes, and nutritional content to improve fish growth, health, and overall quality.
This versatile machine serves aquaculture and animal feed pellet production, including floating fish feed (catfish, tropical fish), shrimp feed, crab feed, pet feed for dogs/cats, tortoises, frogs, and more. By changing the machine mold, you can produce different shaped pellets ranging from 0.4mm to 15mm, suitable for feeding from baby fish to large fish.
Key Features
- Controllable density for pet feed and aquatic feed
- Dry puffing process uses self-heating method without steam system
- Screw design with powerful self-cleaning function
- Variable speed cutting head with adjustable gap between cutter and template
- Novel design, compact structure, and high production efficiency
Applications
The fish feed extruder machine processes corn, soybean, animal scraps, and other raw materials to produce feed for dogs, cats, fish, birds, rabbits, shrimp, minks, foxes, and various pets. Suitable for farmers and small to medium-sized feed factories, the machine produces neatly formed, smooth pellets that float on water surfaces for over 12 hours without sinking, preventing water pollution and reducing fish diseases through sterilization.
Pellet Customization
Final pellet sizes range from 0.9mm to 12mm according to your requirements. Simply change the molds to achieve different size pellets, with various shapes available for customization.
Product Specifications
| Model |
Capacity (kg/h) |
Main Motor (kw) |
Feeder Motor (kw) |
Cutter Motor (kw) |
Screw Diameter (mm) |
Machine Size (mm) |
Weight (kg) |
| DGP-40 | 40-50 | 5.5 | 0.4 | 0.4 | φ40 | 1.36*1.3*0.85 | 320 |
| DGP-60 | 120-150 | 15 | 0.4 | 0.4 | φ60 | 1.36*1.33*0.86 | 420 |
| DGP-70 | 200-250 | 18.5 | 0.4 | 0.4 | φ70 | 1.36*1.33*0.86 | 550 |
| DGP-80 | 300-350 | 22 | 1.5 | 0.55 | φ80 | 2.3*1.7*1.4 | 720 |
| DGP-90 | 400-450 | 30 | 1.5 | 0.55 | φ90 | 2.3*1.8*1.4 | 1100 |
| DGP-100 | 500 | 37 | 1.5 | 1.5 | φ100 | 2*2.8*1.2 | 1500 |
| DGP-120 | 600-700 | 55 | 1.5 | 1.5 | φ120 | 2.2*2.9*1.2 | 1800 |
| DGP-135 | 800-900 | 75 | 1.5 | 2.2 | φ135 | 2.2*3.1*1.37 | 2000 |
| DGP-160 | 1000-1200 | 90 | 2.2 | 2.2 | φ160 | 2.3*3.15*1.38 | 2500 |
| DGP-200 | 1800-2000 | 132 | 3 | 3 | φ200 | 2.35*3.45*1.65 | 3200 |
Manufacturer Information
Tianjin Mikim Technique Co., Ltd. (Mikim Machinery) is a high-tech enterprise integrating scientific research, design, manufacture, installation, commissioning, and after-sales service. With 35 years dedicated to feed machinery design and production, the company holds certifications including CE and ISO.
The company specializes in two main fields: feed pellet machine production lines (hammer mill, mixer, conveyor, feed pellet machine, cooling & vibration system, packing and sealing) and feed extruder production lines (mixer, twin screw extruder machine, dryer, drum seasoning machine, cooling towers, packing machine).
Mikim Machinery produces high-quality, competitively priced equipment exported worldwide, enjoying a strong reputation with comprehensive after-sales service to help customers solve operational problems.
