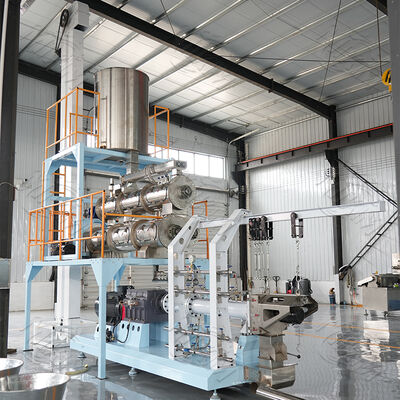

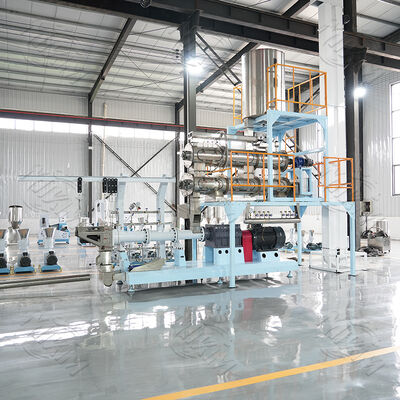

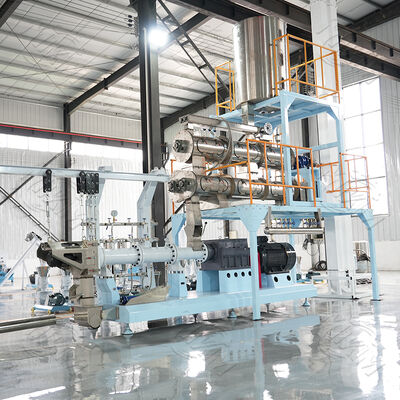

CE Factory Sale Wet Dry Type floating fish feed/shrimp Food Pellets extruder machine Twin Screw Single Screw Extruder Machine

Complete equipment Floating Fish feed pet food production line

The fish feed pet food production line is increasing with the variety of pets, and various pets are different from adults and children. The requirements for pet food are also increasing. Tianjin Mikim Technique Co., Ltd has developed a variety of pet food production lines according to the market demand. According to the different output, the production line also has a variety of configurations to meet the needs of different customers. The production equipment can adjust the raw materials, temperature, moisture and other process parameters to make the product have the characteristics of novel shape, unique taste, rich nutrition, and delicate tissue, which is suitable for different pet tastes. The production line is widely applicable to the production of dog, cat, fish, shrimp, fox and various pet feeds, and is an ideal choice for different manufacturers.

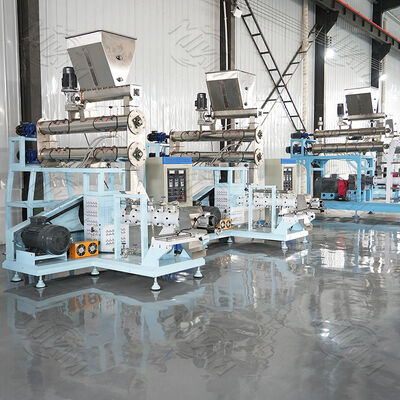

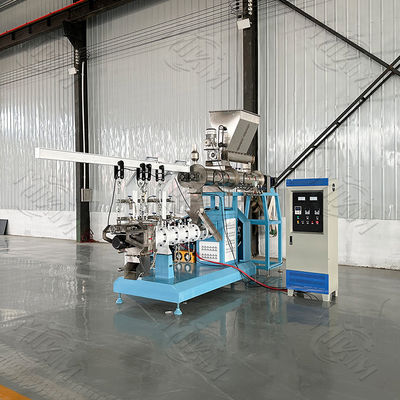

1. Single screw floating fish food pellet maker machine

Single-Screw floating fish feed pellet maker machine is very suitable for aquatic pet feed. The energy consumption of single-screw is lower than that of a twin-screw by kneading and rubbing each other. In this way, the material can be kneaded and ripened more fully, the overall ripening degree can reach more than 95%, the stability of the product in water can be maintained at more than 24h, and the surface finish and particle uniformity of the particles are also better. After the extruded feed is fully cooked, the animals will not only taste good, but also have high digestibility and easy to absorb nutrients.

Model	Capacity t/h	Main Power	feeding power	screw diameter	cutting power	conditioner power	Weight
DSP85	0.35-0.4	22kw	1.1kw	80	0.75kw	1.5kw	1000kg
DSP90	0.5-0.6	30kw	1.1kw	90	1.1kw	2.2kw	2000kg
DSP100	0.6-0.7	37kw	1.1kw	100	1.1kw	3kw	2100kg
DSP120	0.7-0.8	55kw	1.1kw	120	1.5kw	3kw	2200kg
DSP135	1.0-1.5	75kw	1.5kw	135	2.2kw	5.5kw	3200kg
DSP145	2.0-3.0	90kw	2.2kw	145	2.2kw	7.5kw	4000kg
DSP160	3.0-4.0	110kw	2.2kw	160	3kw	11kw	4500kg
DSP175	4.0-5.0	132kw	3.0kw	175	3kw	15kw	5000kg

Crusher Machine.

Crushing material into Power.size can adjustable, have screen inside

high-efficiency multi-function pulverizer, the size after crushing can be adjusted according to customer requirements.

Mixer Machine

Feed mixer machine is usually used to fully and evenly mix the crushed feed raw materials together. Like wheat flour, corn flour, soybean flour, bone meal, soybean oil, etc.

Dryer Machine

Vertical feed pellet dryer is a machine that is designed to remove moisture from feed pellets, which are widely used to fish feed pellets,

Horizontal Mixer Machine

It can be used for food, pharmaceutical industry powder raw materials and a small amount of liquid or dry powder raw materials mixing, such as pastry stuffing or mix dry powder, etc.

Octagonal Seasoning Machine

It is very popular in food processing industry. It's mainly used in flavoring and mixing all kinds of food, such as chips, french fries, fruit brittle, fried food, puffed food, snack food, leisure food, fruit chips, potato chips etc.



Drum Flavoring Machine

By the turning of the tumbling box, it can coat the products with even layer of the coating flour.Increase the quantity of the flour on the products surface.It causes the obvious scaly food surface

Mesh-belt Type Fish Feed Dryer

it is applied in the construction industry, food industry, chemical industry, ceramic industry, paper products, bamboo and wood products, flower and grass industry, rubber industry, and food puffing industry.

Packing Machine

Packing Material : Organic fertilizer, feed, river sand, grain, chemical industry, metallurgy, refractory materials, etc.

Counter Flow Cooler Machine

The feed cooler/dryer is suitable for cooling various kinds of pellets such as pelleted feed, expanded feeds, extruded feeds and flake feeds etc.

Conveyor

The conveying speed can be controlled bu frequency inverter to follow the feeding speed of extruder

length can be customized ,

Advantages of Single-Screw floating fish dog food pellet extruder machine

1. Internationally advanced pelletizing mechanism utilizes a soft blade fit for infinitely variable speeds, allowing the output to be cut into desired lengths with minimal burr generation.
2. A novel and unique design and simple structure ensure easy assembly and disassembly, making it convenient to operate.
3. The screw sleeve and screw are made of a special wear-resistant, high-temperature alloy steel, heat-treated and molded for wear resistance and long life.
4. A unique internal pressurized grinding device ensures feed yield and quality, and an electric heater enhances feed expansion.
5. The main motor utilizes a high-quality Y-series three-phase motor for powerful power.
6. The speed-adjustable feeding mechanism ensures convenient operation, even feed feeding, and prevents machine stalling.
7. The discharge template is easily replaceable; if you require feed with a different aperture, simply replace the template with the desired aperture. 8. The floating, extruded pellet feed produced can float on the water surface for at least 12 hours without dissolving. It is highly digestible and highly edible for fish and livestock. It allows for easy monitoring of fish and fish consumption, eliminating feed waste and water pollution. High temperature and high pressure effectively kill harmful pathogens such as E. coli and Salmonella, ensuring feed hygiene. This facilitates protein denaturation and starch gelatinization, making it easier for fish and livestock to digest. Generally, extruded floating fish feed saves 8%-15% of feed compared to powdered or pelleted feed.
9. It can produce pelleted feed for sinking aquatic products and livestock, eliminating most of the toxic and anti-nutritional factors, such as antitrypsin and urease, found in the feed. This facilitates digestion and improves nutrient utilization.
10. The conditioner's steam control is more convenient and accurate, allowing for uniform addition of liquid ingredients.
11. The feed flows freely into the extrusion section, with a specially designed feed section to prevent blockage and backflow.
12. A quick discharge device is installed under the conditioner to prevent materials or foreign matter from entering the expansion section in an emergency.
